What is a Subprogram in Traditional Programming

Earlier in this module it was stated that the primary philosophy of structured programming is to partition a large program into a number of smaller programs. Let's now look at a simple example of how this is done. Consider the GoForARide program from the previous lesson.
GoForARide

Put on cycling clothes
For 2 hours
  Ride for 15 minutes
  Drink from water bottle
Remove cycling clothes
Take a shower

The statement:

Drink from water bottle

seems pretty simple, but for the sake of discussion let us suppose that it involves the following.

If the water bottle is empty
  Find a source of water
  Open the water bottle
  Fill it with water
  Close the water bottle
Drink some water

Thus our GoForARide program really should be:
GoForARide2

Put on cycling clothes
For 2 hours
  Ride for 15 minutes
  If the water bottle is empty
    Find a source of water
    Open the water bottle
    Fill it with water
    Close the water bottle
  Drink some water
Remove cycling clothes
Take a shower

This is starting to get a little complicated, so in order to simplify the program we might create a subprogram called DrinkFromWaterBottle that looks like:
DrinkFromWaterBottle

If the water bottle is empty
  Find a source of water
  Open the water bottle
  Fill it with water
  Close the water bottle
Drink some water

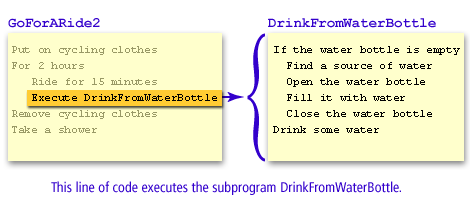

And then call this subprogram from our GoForARide program as in the following (roll your cursor over the highlighted line of code to see a graphic representation of this subprogram being executed):

Put on cycling clothes
For 2 hours
  Ride for 15 minutes

As the name subprogram suggests, a subroutine behaves in much the same way as a computer program that is used as one component in a larger program or another subprogram. A subroutine is often coded so that it can be called several times from several places during execution of the main program, including from other subroutines, and then return to the next instruction after the initial call once the subroutine's task is completed.

In Fortran 2023, a subroutine does not encompass the full functionality of both procedures and functions.

1. ✅ Procedures in Fortran
   • Subroutines
   • Functions
2. ✅ Subroutines vs. Functions


   Aspect	Subroutine	Function
   Return value	No return value; uses arguments to return data	Returns a value via the function name
   Usage in expressions	Cannot be used directly in expressions	Can be used in expressions
   Call syntax	CALL mySub(args)	result = myFunc(args)
   Side effects	Typically used for actions (I/O, modifying arguments)	Typically used for computing and returning values

In Fortran 2023:

• A subroutine does not encompass the full functionality of a function.
• Both are procedures, but each has distinct syntax and usage patterns.
• In Fortran 2023, this distinction still holds and has not been merged.

Here is a Fortran 2023 program that performs Gaussian Elimination on a 3×3 matrix to reduce it to row echelon form:
✅ Features:

• Written in Fortran 2023 syntax
• Modular: separates the elimination logic into a subroutine
• Uses real64 from iso_fortran_env for numerical precision

🔢 Program: Gaussian Elimination for 3×3 Matrix

program gaussian_elimination
    use, intrinsic :: iso_fortran_env, only: real64
    implicit none

    real(real64) :: A(3,4)  ! Augmented matrix [A|b], 3x3 matrix with RHS
    integer :: i, j

    ! Sample 3x3 augmented matrix [A|b]
    A = reshape([ &
        2.0_real64, 1.0_real64, -1.0_real64,  8.0_real64, &
       -3.0_real64, -1.0_real64, 2.0_real64, -11.0_real64, &
       -2.0_real64, 1.0_real64, 2.0_real64, -3.0_real64  &
    ], shape(A))

    print *, "Original matrix [A|b]:"
    call print_matrix(A)

    call gaussian_elim(A)

    print *, "Row echelon form [A|b]:"
    call print_matrix(A)

contains

    subroutine gaussian_elim(A)
        real(real64), intent(inout) :: A(3,4)
        integer :: i, j, k
        real(real64) :: factor

        do i = 1, 2
            ! Partial pivoting (optional for stability)
            do k = i + 1, 3
                if (abs(A(k,i)) > abs(A(i,i))) then
                    call swap_rows(A, i, k)
                end if
            end do

            ! Eliminate below pivot
            do j = i + 1, 3
                factor = A(j,i) / A(i,i)
                A(j,i:4) = A(j,i:4) - factor * A(i,i:4)
            end do
        end do
    end subroutine gaussian_elim

    subroutine swap_rows(A, row1, row2)
        real(real64), intent(inout) :: A(3,4)
        integer, intent(in) :: row1, row2
        real(real64) :: temp_row(4)

        temp_row = A(row1,:)
        A(row1,:) = A(row2,:)
        A(row2,:) = temp_row
    end subroutine swap_rows

    subroutine print_matrix(A)
        real(real64), intent(in) :: A(3,4)
        integer :: i
        do i = 1, 3
            print '(4F10.4)', A(i,:)
        end do
    end subroutine print_matrix

end program gaussian_elimination

🧪 Sample Output

Original matrix [A|b]:
    2.0000    1.0000   -1.0000    8.0000
   -3.0000   -1.0000    2.0000  -11.0000
   -2.0000    1.0000    2.0000   -3.0000

Row echelon form [A|b]:
    2.0000    1.0000   -1.0000    8.0000
    0.0000    0.5000    0.5000    1.0000
    0.0000    0.0000    1.0000   -2.0000

Making the task of drinking from the water bottle a subprogram has noticeably simplified the GoForARide program, but there is an additional benefit in that the DrinkFromWaterBottle subprogram can be used in other programs as well. Imagine how this subprogram might be used in programs such as DoYardWork or GoForAHike. The next lesson concludes our look at the fundamental concepts of structured programming.

1. Unstructured programming: Tends to produce programs that are difficult to understand and expensive to maintain
2. Structured programming: A form of programming that breaks complex tasks into smaller, simpler tasks
3. Pseudocode: Outlines the logic of a program in structured English
4. Subprogram: A program within a program
5. Sequence: Performing tasks in a particular order
6. Decision: Conditionally performing a task
7. Repetition: Repeatedly performing a task

Structured programming is a programming paradigm aimed on improving the clarity, quality, and development time of a computer program by making extensive use of subroutines, block structures and repetition constructs. This is in contrast to using simple tests and jumps such as the goto statement which could lead to "spaghetti code" which is both difficult to follow and to maintain as was shown by Edsger Dijkstra .

Following the structured program theorem, programs are seen as composed of control structures:

1. Sequence: ordered statements or subroutines executed in sequence.
2. Selection: one or a number of statements is executed depending on the state of the program. This is usually expressed with keywords such as if-then-else.
3. Iteration: a statement or block is executed until the program reaches a certain state, or operations have been applied to every element of a collection. This is usually expressed with keywords such as while, repeat, for or do..until. Often it is recommended that each loop should only have one entry point and only one exit point.
4. Recursion: A statement is executed by repeatedly calling itself until termination conditions are met. While similar in practice to iterative loops, recursive loops may not be more computationally efficient because the parameters rest on the local call stack.

[1]Subprogram: A program within a program. Also called a function, method, procedure, or subroutine.
