Lesson 3 The statechart diagram
ObjectiveExplain why and how the statechart diagram is used during design

Statechart Diagram

In most systems, there are at least a few key classes of objects that undergo substantial changes during their lifetime. For these objects, a single event may result in very different responses based on the current condition of the object. The condition of the object is referred to as the object's state.
  • Object State
    The state is defined by the values of the attributes and the relationships of the object. For example, when a credit account is open, an attempt to purchase an item will result in a comparison of the purchase amount and the available credit. When the credit account is closed, an attempt to purchase items results in an error. Likewise, a relationship may cause a different response. For example, when a ShowSeat in the ticketing system is not associated with a PriceTier, it cannot be sold. Once the link to the PriceTier has been established, the ShowSeat may be sold.

Why and how the Statechart Diagram is used

A State Chart Diagram (also known as a state machine diagram) is a behavioral diagram used during system design to model the dynamic behavior of a system by representing its states, transitions, and events. It is part of the Unified Modeling Language (UML) and is particularly useful for designing systems with complex state-dependent behavior, such as embedded systems, user interfaces, or real-time applications.
Why State Chart Diagrams are Used in System Design
  • Modeling Dynamic Behavior:
    • State chart diagrams capture how a system or an object transitions between different states in response to events, making it easier to understand and design complex workflows or processes.
    • Example: In a traffic light system, states like "Red," "Green," and "Yellow" transition based on timers or events.
  • Clarifying System States:
    • They explicitly define all possible states of a system or component, ensuring designers account for every condition (e.g., "Idle," "Processing," "Error").
    • This helps prevent ambiguous or undefined behaviors during implementation.
  • Handling Event-Driven Systems:
    • State charts are ideal for systems where external or internal events (e.g., user inputs, timeouts, errors) trigger state changes, ensuring the system responds appropriately.
    • Example: In a vending machine, events like "Insert Coin" or "Select Item" trigger transitions between states like "Waiting" or "Dispensing."
  • Improving Design Clarity:
    • They provide a visual representation of state transitions, making it easier for stakeholders (developers, designers, clients) to understand and validate system behavior.
    • This reduces miscommunication and errors during development.
  • Supporting Verification and Testing:
    • State charts help identify edge cases, invalid transitions, or missing states, enabling designers to create robust systems.
    • They serve as a blueprint for generating test cases to verify system behavior under different conditions.
  • Facilitating Implementation:
    • State charts map directly to code structures like finite state machines (FSMs), simplifying the translation of design into software or hardware logic.
How State Chart Diagrams are Used in System Design
  • Identify Objects or Components:
    • Determine which system components or objects exhibit state-dependent behavior (e.g., a user session, a device, or a process).
    • Example: In an ATM system, the ATM machine or the user session can be modeled with states.
  • Define States:
    • List all possible states the object can be in. States represent distinct conditions or modes of the system.
    • Example: For an ATM, states might include "Idle," "Card Inserted," "PIN Entered," "Transaction Processing," or "Error."
  • Identify Events and Transitions:
    • Specify events that cause the system to move from one state to another (e.g., user actions, timeouts, system signals).
    • Define transitions, including any conditions (guards) or actions triggered during the transition.
    • Example: Event "Insert Card" transitions the ATM from "Idle" to "Card Inserted."
  • Model Hierarchical States (if needed):
    • For complex systems, use composite states (nested states) to represent sub-states within a higher-level state.
    • Example: A "Transaction Processing" state might have sub-states like "Withdrawing" or "Checking Balance."
  • Incorporate Actions and Activities:
    • Define actions that occur when entering, exiting, or staying in a state (e.g., displaying a message, logging data).
    • Example: On entering the "Error" state, the ATM might display "Invalid PIN."
  • Validate and Refine:
    • Review the diagram with stakeholders to ensure all states, transitions, and events are accounted for.
    • Check for unreachable states, deadlocks, or ambiguous transitions and refine the design.
  • Integrate with Other Design Artifacts:
    • Use state chart diagrams alongside other UML diagrams (e.g., class diagrams, use case diagrams) to provide a complete system design.
    • Example: A state chart for a user session can link to a class diagram defining session attributes.
  • Guide Implementation and Testing:
    • Developers use the state chart to implement state machines in code (e.g., using switch statements, state design patterns, or frameworks like Spring Statemachine).
    • Testers use it to create test cases for each state, transition, and event.
Example Use Case Consider designing an online shopping cart system:
  • States: "Empty," "Items Added," "Checkout Initiated," "Payment Processing," "Order Confirmed."
  • Events: "Add Item," "Remove Item," "Proceed to Checkout," "Submit Payment," "Payment Approved."
  • Transitions:
    • From "Empty" to "Items Added" on "Add Item."
    • From "Checkout Initiated" to "Payment Processing" on "Submit Payment."
  • Actions: Display "Order Placed Successfully" on entering "Order Confirmed."
  • The state chart ensures the system handles all user interactions (e.g., adding items, abandoning checkout) and edge cases (e.g., payment failure).
Benefits in System Design
  • Modularity: Breaks down complex behavior into manageable states and transitions.
  • Scalability: Hierarchical states allow modeling of complex systems without clutter.
  • Reliability: Explicitly defined states and transitions reduce the risk of unexpected behavior.

In summary, state chart diagrams are a critical tool in system design for modeling, analyzing, and implementing state-dependent behavior, ensuring systems are robust, predictable, and aligned with requirements.

When to use Statechart

The statechart will not be used for every class in the model. The statechart is a special purpose tool that is employed only for objects that possess substantial state-specific behavior. How can you recognize such objects? One technique is to review the interaction diagrams and identify those objects that participate in most, or even all, of the scenarios. Specifically, look for those objects that have the most incoming event arrows because every incoming event has the potential to change the current state of the object.

States in Sequence

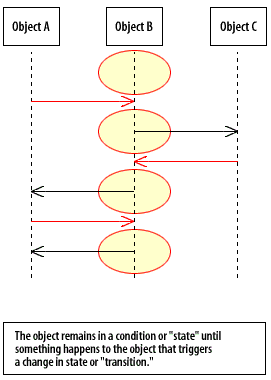

The image depicts a state transition diagram that represents the interaction between three objects: Object A, Object B, and Object C, using UML-style vertical lifelines and horizontal arrows. Here's a description of the states and transitions in sequence:
🔁 State Sequence Description
  1. Object B enters an initial state (First oval shape under Object B)
  2. Object A sends a message to Object B → triggers a transition to a new state in Object B (second oval)
  3. Object B sends a message to Object C → indicating continued operation or delegation
  4. Object C responds to Object B
  5. Object B sends a message back to Object A → feedback or result of operation
  6. Object A sends another message to Object B
  7. Object B transitions into another state (Final oval under Object B)
  8. Object B responds back to Object A again

🧠 Text at the Bottom of the Diagram:

The object remains in a condition or 'state' until something happens to the object that triggers a change in state or 'transition.'" This diagram highlights how "state transitions are triggered by interactions between objects", and how an object's behavior depends on its current state, which is a core principle of the State Design Pattern.

States in Sequence
